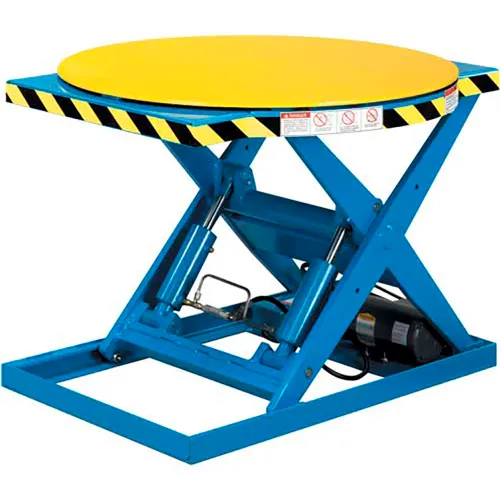

Ballymore Roto Max Rotating Scissor Lift Table, Hand Operated, 3500 lb. Capacity, 43" Dia., 460V

Weight Capacity 3500 lbs

Model #: WB293287

MPN #: BM-RM-3.5-33R-H

The Roto-Max electric hydraulic work positioner places the load where the operator would like the work load positioned allowing complete flexibility to do the ergonomically safest job with maximum efficiency. Whether the load is one pound or 3,500 pounds, the positioner height does not change until the individual wants it to change. With a lowered height of only 6-1/2", the operator has easy access to the top layer of product. The raised height of 32-1/2" (plus pallet height) is ideally suited for most applications. The 43" diameter top rotates easily, thus giving the operator access to product without having to stretch or walk around. The high performance electric 1-1/2 hp motor runs on a standard 20 amp 115 volt single phase circuit.

Features:

• Zerk Fittings: On camroller and pivot points. Regreasable. Lasts longer than lifetime lubricated bearings. Easily serviced
• 15 Min. Motor: Intermittent duty. Able to be run for 15 minutes of every hour. Suitable for medium and high cycle applications
• Trapped Rollers: Captured 'Lift-Lok' secures top and base leg rollers and allows for easy maintenance access when lowered
• Teflon Seals: Extends cylinder life by reducing friction and wear. Faster stroke speeds than rubber. High chemical resistance
• 360 Degree rotating top with heavy duty cam rollers and exclusive Roto-Bearings
• Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods
• Surfaces degreased, descaled and finished with safety yellow and blue enamel
• Integral gear pump with check valve, relief valve, solenoid valve
• Smooth steel top with yellow and black safety strips
• 10 foot power cord (Connector not included)
• Control box NEMA constant pressure, magnetic backed
• S.A.E. hoses and fittings
• Internally mounted motor
• Includes hydraulic oil and filter

Weights & Dimensions

Length    45 in
Width    30 in
Lowered Height    6-1/2 in
Raised Height    33 in
Weight Capacity    3500 lbs
Platform Width    43 in
Platform Length    43 in
Product Details

Assembly Required    No
Type    Single Scissor Lift Table
Color    Blue
Lift Type    Hydraulic
Series    Roto Max
Voltage    460 V
Control    Hand Operated
Lift Time    32 Seconds
Material    Steel
Operation    Powered
Phase    3
Manufacturers Part Number    BM-RM-3.5-33R-H
Duty    Heavy
Brand    Ballymore
Warranty

Warranty    2 Year Parts/5 Year Structure yr
