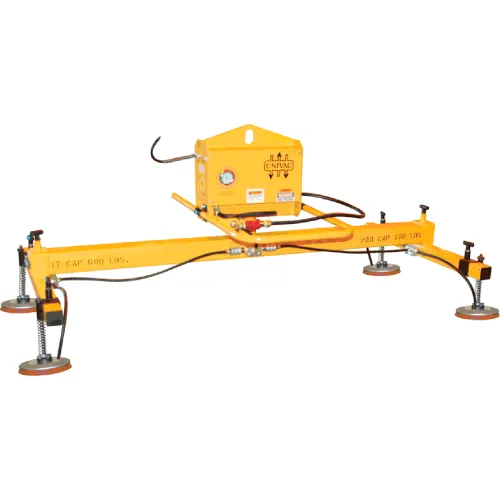

Univac Horizontal Twin Crossarm with 4 Pad Vacuum Lifter, 1240 Lbs. Capacity
Model #: WBB2795234
MPN #: DE12S8-5-D3
For lifting wide or thin material. The crossarms make the load easier to balance. Ball mounted vacuum pads. Brass fittings. Push lock hose (designed for 250 psi). Slide vales allow for manual isolation of vacuum pads. Muffler/filter is spin on type for easy change out. Made In The USA
Weights & Dimensions
| Length | 72 in |
| Width | 48 in |
| Height | 48 in |
| Weight Capacity | 1240 lbs |
| Weight | 560 lbs |
| Grip Range | -- in |
| Working Load Limit | 1240 lbs |
Product Details
| Assembly Required | No |
| Type | Twin Crossarm with 4 Pad Vacuum Lifter |
| Color | Yellow |
| Position | Horizontal |
| Material | Steel |
| Package Quantity | 1 |
| Manufacturers Part Number | DE12S8-5-D3 |
| Brand | Univac |
Warranty
| Warranty | 2 |
Compliance & Certifications
| Certifications | ASME B30.20, BTH-1 |
