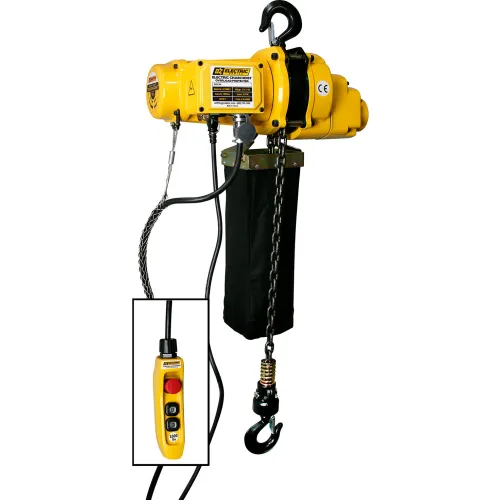

OZ Lifting Products Electric Hoist, 1000 lb. Capacity, 30' Lift, 20 FPM, 115V
Model #: WBB3205125
MPN #: OZ1000EC-30
The Electric Chain Hoist by OZ Lifting Products is engineered for heavy-duty lifting with a 1000 lb. capacity. This robust hoist features a wired pendant for precise control and is built with precision-machined gears to ensure smooth and efficient performance. The dual braking system provides enhanced safety, making it suitable for demanding environments. Designed for easy use on a standard 115V power source, the Electric Chain Hoist offers reliability and power in a lightweight package, perfect for a wide range of applications.
Features:
Features:
- Overload protection with a high-performance friction clutch
- Forged carbon steel hooks, with bottom hook rotation to prevent chain twisting
- Load sheave reduces vibration and wear for smooth lifting
- Precision-machined, heat-treated gears with oil bath lubrication
- Dual braking system for instant and safe operation
- Grade80 case-hardened alloy steel chain for long service life
- H3 duty class with 30% duty cycle for versatile applications
- Operates on standard115V power for easy use
- Options for corded pendant or wireless remote control
- Ergonomic IP64 pendant or remote controls with emergency stop
- Lightweight, compact aluminum body
- Includes durable vinyl chain bag
- Individual serial number and test certificate
Weights & Dimensions
| Length | 6-11/16 in |
| Width | 17-3/4 in |
| Height | 16-15/16 in |
| Weight Capacity | 1000 lbs |
| Control Cord Length | 28 ft |
| Head Room | 16-15/16 in |
| Lift | 30 ft |
| Lift Speed | 20 ft/min |
Product Details
| Assembly Required | No |
| Type | Electric Chain Hoist |
| Horsepower | 1-13/16 HP |
| Color | Yellow |
| Hertz | 60 Hz |
| Duty Rating | H3 |
| Voltage | 115 V |
| Material | Aluminum, Steel |
| Chain Falls | 1 |
| Phase | 1 |
| Manufacturers Part Number | OZ1000EC-30 |
| Brand | OZ Lifting Products |
Warranty
| Warranty | 1 yr |
Compliance & Certifications
| Certifications | CE |
Brochure(1)
