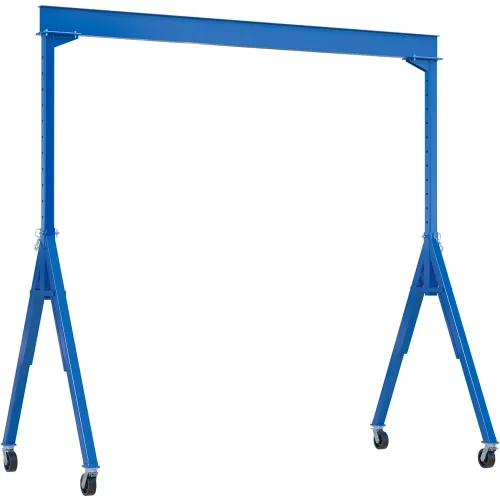

Vestil Adj. Height Steel Gantry Crane with Total Locking Casters, 15'W x 16-1/16'H, 8000 lb. Cap

  • Sale
  • $8,279.00


Vestil Adj. Height Steel Gantry Crane with Total Locking Casters, 15'W x 16-1/16'H, 8000 lb. Cap

Model #: WBB3208871

MPN #: AHS-8-15-16-TLC

The Industrial Steel Gantry Crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service. Unit comes standard with total locking phenolic casters. More economical and flexible than permanent cranes and features a quick setup design. Painted blue finish with warning and operating stickers and complete owner's manual. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

Features:

  • Sleek painted finish
  • Easy adjustable height can be done with fork truck or other overhead lifting device
  • Beam length allows for use with items, both large and small
  • All units comply with applicable CMAA and ANSI specifications

Weights & Dimensions

Width 15
Weight Capacity 8000 lbs
Weight 1142 lbs
Beam Height 10-1/8 in
Wheel Diameter 8 in
Base Diameter Or Dimension 89-3/4 in
Max Height 16-1/16 in
Min Height 10-9/16 in
Flange Width 4 in
I-Beam Height 10-1/8 in
Usable Width 149-3/4 in

Product Details

Assembly Required Yes
Type Adjustable Height
Color Blue
Wheel Type 4 Swivel
Material Steel
Manufacturers Part Number AHS-8-15-16-TLC
Brand Vestil

Model #: WBB3208871

MPN #: AHS-8-15-16-TLC

User Documentation

Specifications(1)

User manuals/guides(2)



Warranty

Warranty 1 yr
