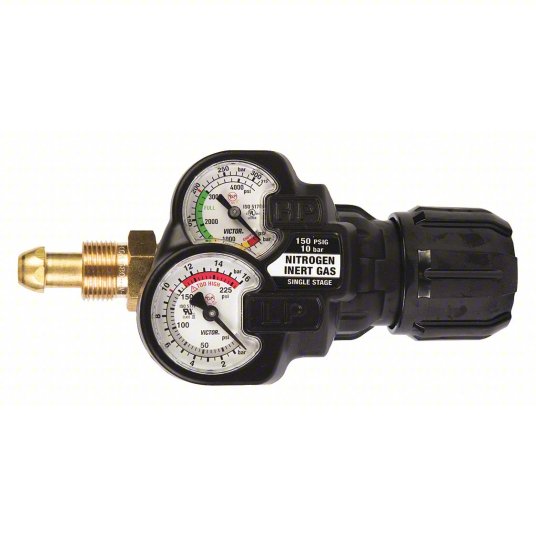

VICTOR Gas Regulator: Single Stage, CGA 580 Inlet, 5/8"-15 F RH Outlet, 150 psig, Neoprene Diaphragm
Item 482W20
Mfr. Model 0781-3634
These regulators are for use with oxygen and inert gases like argon, helium, and nitrogen. They are not compatible with fuel or corrosive gas.
Brand
VICTOR
VICTOR
Manufacturer Part Number0781-3634
Regulator SeriesEdge 2.0 ESS32
For Gas Type
Argon; Helium; Nitrogen
Argon; Helium; Nitrogen
Mounting TypeCylinder
Number of StagesSingle Stage
CGA Number
CGA 580
CGA 580
Inlet Connection
CGA 580
CGA 580
Inlet Connection Type
NGO
NGO
Inlet Connection Gender
Male
Male
Inlet Connection Size
0.965"-14
0.965"-14
Inlet Thread Direction
Right Hand
Right Hand
Inlet Pressure (Maximum)
3,000 psig
3,000 psig
Outlet Connection
5/8"-15 F RH
5/8"-15 F RH
Outlet Connection Type
UNF
UNF
Outlet Connection Gender
Female
Female
Outlet Connection Size
5/8"-15
5/8"-15
Outlet Thread Direction
Right Hand
Right Hand
Outlet Pressure (Maximum)
150 psig
150 psig
Outlet Pressure (Minimum)
0 psig
0 psig
Body Material
Brass
Brass
Diaphragm Material
Neoprene
Neoprene
Control Type
Knob
Knob
Maximum Gauge Outlet Pressure
3,000 psig
3,000 psig
Body Diameter
3.6 in
3.6 in
Gauge Diameter
2 in
2 in
Overall Depth
4 in
4 in
Overall Height
4 in
4 in
Overall Width
6 in
6 in
ApplicationIndustrial and General Fabrication; Light Fabrication; Repair and Maintenance; Structural Steel Fabrication
FeaturesConsistent Pressure and Flow Delivery; Fully Enclosed, Highly Visible Modular Gauges for More Clarity With Robust Metal Gauge Guard; High Resistance to Oxygen Related Fires and Slam Knob Absorbs Impact in the Event of Cylinder Fall; Robust Seat Gives Optimum Performance
Standards
ASTM G175; CGA E-4; ETL Listed; UL252
ASTM G175; CGA E-4; ETL Listed; UL252
UNSPSC
40142201
40142201
Country of Origin
Mexico
Mexico
