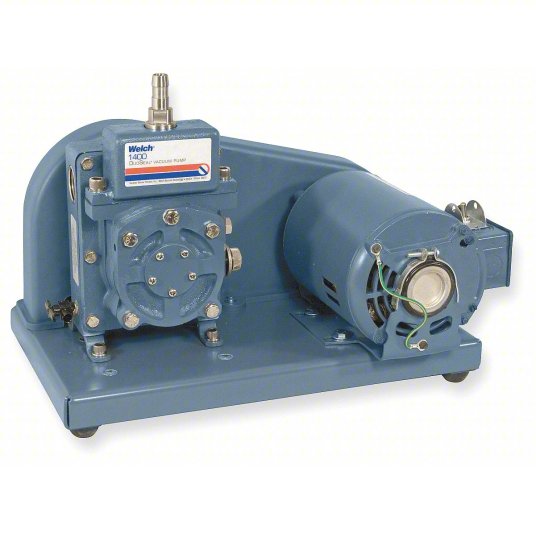

DUOSEAL Vacuum Pump: 0.33 hp, 1 Phase, 115V AC, 0.9 cfm Free Air Displacement, 1400B-01
Brand
DUOSEAL
DUOSEAL
Output Power
0.33 hp
0.33 hp
Maximum Operating Pressure
0 psi
0 psi
Maximum Discharge Pressure
0 mbar
0 mbar
Maximum Vacuum
0.0001 torr
0.0001 torr
Free Air Displacement
0.9 cfm
0.9 cfm
Voltage
115V AC
115V AC
ApplicationChamber Evacuation; Degassing; Freeze Drying; Light Bulb; Neon Sign Manufacturing; Picture Tube Evacuation; Potting; Rice Porosity Test; Vacuum Drying
Runs Dry
No
No
Maximum Speed
580 RPM
580 RPM
Phase
Single
Single
Current Rating
5.6 A
5.6 A
Frequency
60 Hz
60 Hz
Overall Height
12.62 in
12.62 in
Overall Length
17.75 in
17.75 in
Overall Width
9 in
9 in
Weight
58 lb
58 lb
Thermal Protection
Automatic Reset
Automatic Reset
Lead-Free
No
No
Valve Type
Gas Ballast
Gas Ballast
Finish
Paint
Paint
Filter Type
Screens
Screens
Includes
Oil
Oil
Manufacturer Part Number
1400B-01
1400B-01
Sub-brand
DUOSEAL
DUOSEAL
Fluid Compatibility
Oil
Oil
For Chemical Type
Highly-Refined Petroleum
Highly-Refined Petroleum
Inlet Size
7/16 in
7/16 in
Inlet Type
NPT
NPT
Maximum Viscosity
339 SUS
339 SUS
Outlet Size
7/16 in
7/16 in
Outlet Type
NW
NW
Seal MaterialPTFE
UNSPSC
40151502
40151502
Country of Origin
USA
USA
These rotary vane pumps provide a continuous vacuum that is high strength. They include a large oil reservoir that helps to dilute contaminants, reducing the need for oil changes. These rotary vane pumps are used in vacuum ovens and vacuum distillation processes.
Item 3Z654
Mfr. Model 1400B-01
