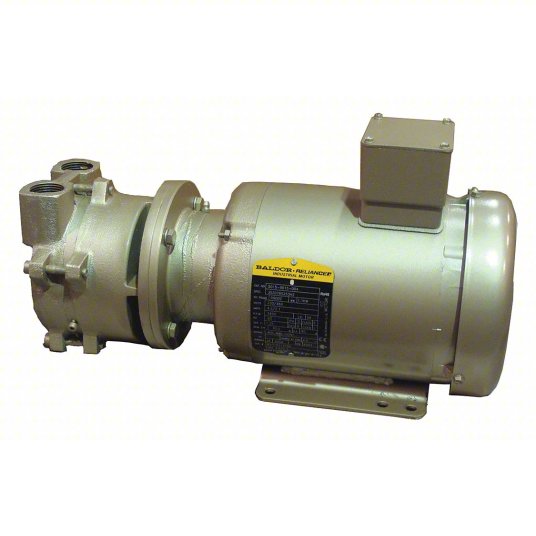

Liquid Ring Vacuum Pump: Motor-Mounted, 1 Stage, 20 cfm, 29 in Hg Max Vacuum, 1.5 hp, Cast Iron
These 1-stage liquid ring vacuum pumps are mounted to an included motor for a compact design with a small footprint.
Item 443X32
Mfr. Model DV0020D-MA3-SGL
Brand
DEKKER VACUUM TECHNOLOGIES, INC.
DEKKER VACUUM TECHNOLOGIES, INC.
Includes Motor
Yes
Yes
Number of Stages
1
1
Nominal Capacity
20 cfm
20 cfm
Maximum Vacuum
29 in Hg
29 in Hg
Output Power
1.5 hp
1.5 hp
Housing Material
Cast Iron
Cast Iron
Impeller Material
316 Stainless Steel
316 Stainless Steel
Maximum Speed
3,500 RPM
3,500 RPM
Compressor Type
Liquid Ring
Liquid Ring
Wattage
1.1 kW
1.1 kW
Phase
Three
Three
Voltage
230/460V AC
230/460V AC
Current Rating
4.2/2.1 A
4.2/2.1 A
Frequency
60 Hz
60 Hz
Power Source
Corded Electric
Corded Electric
Sound Level
68 dB
68 dB
Inlet Size
1 in
1 in
Inlet Type
FNPT
FNPT
Inlet Gender
Female
Female
Outlet Size
1 in
1 in
Outlet Type
NPT
NPT
Outlet Gender
Female
Female
Overall Height
9.23 in
9.23 in
Overall Length
17.24 in
17.24 in
Overall Width
6.5 in
6.5 in
Manufacturer Part Number
DV0020D-MA3-SGL
DV0020D-MA3-SGL
Weight
64 lb
64 lb
Standards
ISO 9001:2015
ISO 9001:2015
Motor Mounting Configuration
Motor-Mounted
Motor-Mounted
UNSPSC
40151502
40151502
Country of Origin
USA
USA
