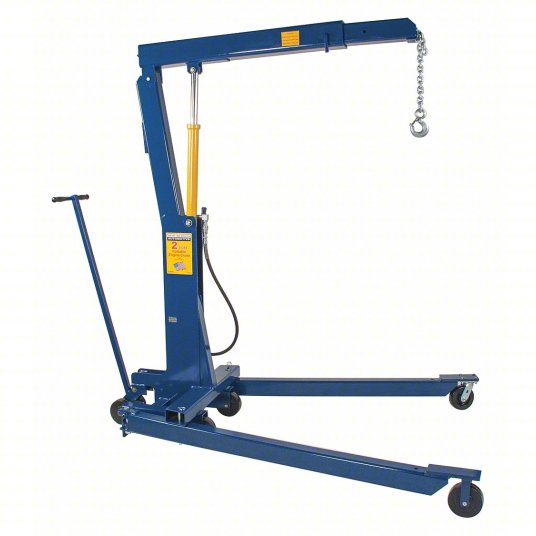

HEIN-WERNER Engine Crane: Engine Crane, Steel, 2 ton Load Capacity, 3 Boom Positions, Blue
Engine cranes (or hoists) help remove or install engines in small or crowded vehicle engine compartments. These lifting devices have beamed supports to hold the engine up over a vehicle so that maintenance can be performed on parts, hoses, electrical wiring, or timing chains. Cranes are used with engine stand supports to safely rotate engines for repairs anywhere on the vehicle.
Weights & Dimensions
| Length | 40 in |
| Width | 40 in |
| Height | 88 in |
| Weight | 616 lbs |
| Max Height | 120-1/2 in |
Product Details
| Type | Engine Crane |
| Capacity | 2 Ton |
| Package Quantity | 1 |
| Description | Manual Folding Engine Crane |
| Color | Blue |
| Manufacturers Part Number | HW93809 |
| Brand | Hein-Werner |
Brand
HEIN-WERNER
HEIN-WERNER
Product Type
Engine Crane
Engine Crane
Frame Material
Steel
Steel
Load Capacity
2 ton
2 ton
Number of Boom Positions
3
3
Boom Capacity (Retracted)
2.2 ton
2.2 ton
Color
Blue
Blue
Overall Length
82 in
82 in
Overall Height
83 in
83 in
Overall Width
50 in
50 in
Boom Capacity (Second Position)
1.9 ton
1.9 ton
Boom Capacity (Third Position)
1.64 ton
1.64 ton
Display Qty
1
1
Display Sell UOM
EA
EA
Extended Boom Length
50-3/4 in
50-3/4 in
FeaturesAdjusts for Wide Clearance with One Front Wheel Caster; Folds for Storage
Frame Material Finish
Plain
Plain
Lifting Actuator
Mechanical
Mechanical
Manufacturer Part Number
HW93809
HW93809
Rear Base Width
28 in
28 in
Retracted Boom Length
50-3/4 in
50-3/4 in
Standards
ANSI/ASME PALD
ANSI/ASME PALD
Wheel Diameter
6 in
6 in
UNSPSC
25191704
25191704
Country of Origin
USA
USA
Model #: WBB2378820
Item 54HH25
Mfr. Model HW93809
SFA Companies 2 Ton Foldable Engine Crane Manual - HW93809
