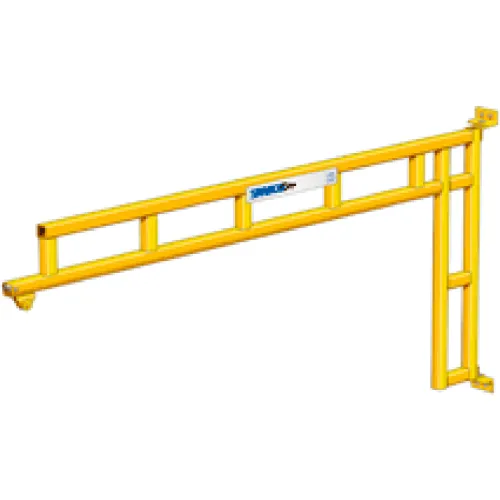

1000 lb., 12' span, Spanco 501 Series, Steel, Wall Mounted Jib Crane, Cantilever Design with Trolley

  • Sale
  • $6,427.00


1000 lb., 12' span, Spanco 501 Series, Steel, Wall Mounted Jib Crane, Cantilever Design with Trolley

Model #: WBB2181302

MPN #: 501-1000-12

Spanco Series 501 wall mounted jib crane requires no floor space or foundation. Ergonomic, enclosed track design is high strength and low weight, the V-shape of the track design virtually eliminates dirt and dust from accumulating on the rolling surface. Smooth, fast and easy rolling trolley requires minimal effort to move your hook mounted hoist of choice. Truss design provides for a low profile which minimizes headroom requirements. Cantilever design transmits less direct force to building column than tie-rod supported jibs and offers the greatest amount of clearance. 200 degree rotation. Indoor service paint finish is standard; outdoor service, food grade service and seaside service available.

Weights & Dimensions

Weight Capacity 1000 lbs
Span 12'
End Stop 4-3/8"
Bracket Centers 5'
Clevis Offset 3-1/16"
Track Depth 17"

Product Details

Track Series 600
Type Wall Mounted Jib Crane
Number of Packages Shipped with Part Number 2
Thrust & Pull 3465 lbs
Manufacturers Part Number 501-1000-12
Brand Spanco

Warranty

Warranty 10 yr
